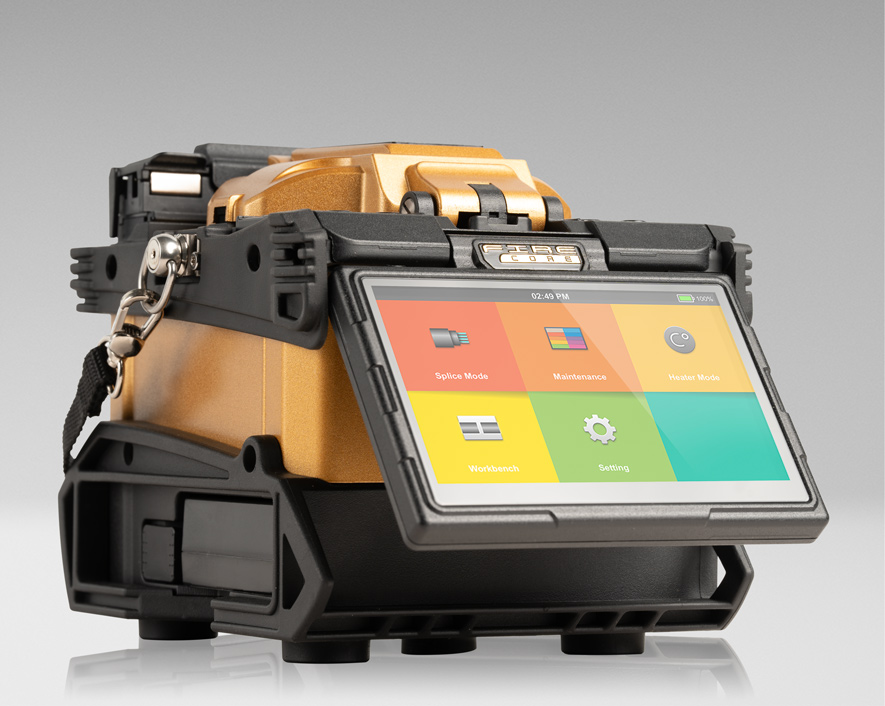

SPARC Fusion Splicer, Core Alignment
SPCO-1 Copy ID to clipboard
Buy OnlinePRODUCT FEATURES
Coming Soon!
The SPARC Core Alignment Fusion Splicer is an advanced Core Alignment Fusion Splicer. It ensures impeccable fiber splicing precision, reliability, and efficiency. Engineered for fiber optic professionals, it combines rapid splicing times with cutting-edge features, offering a seamless and dependable splicing experience even in challenging environments.
- Splices fiber optic cables in as little as 4 seconds
- Pressure Heater Technology reduces heating time to only 9 seconds
- Versatile fiber holder to easily switch between standard and loose-tube fibers
- Improved lighting for higher visibility in dark settings
- Intuitive full touch screen for enhanced user experience
- 5200 mAh battery provides up to 300 cycles (splicing and heating) on one charge
- Rugged design with water resistance (IPx2), shock resistance (drop tested from 30"), and dust resistance (IP5X)
- On-board memory stores up to 20,000 splice data or 10,000 images
Kit Includes
Kit includes
FC-800
|
SPARC Blade Fiber Cleaver |
JIC-375
|
Fiber Optic Stripper, Three Hole |
JIC-186
|
Wire & Kevlar® Cutting Shears |
PSI-15
|
Quick Sleever® |
FW-5
|
Fiber Wipes, Wet (Pack of 5) |
FDC-66
|
Fiber Scraps Disposal Can |
CWP-125
|
Pointed Cotton Swabs, Pack of 125 |
| FSP-CO | SPARC FIRE CORE Fusion Splicer |
| H-2000 | SPARC Carrying Case |
| FH-SOC | SPARC SOC Holder |
| HH-SOC | SPARC SOC Heater Holder |
| ADP-65JH | SPARC AC Adapter |
| FSP-CT | SPARC Cooling Tray |
| FSP-E50 | SPARC Electrodes (1 Spare) |
| FSP-B52 | SPARC Battery Pack |
| ADP-PC | SPARC Power Cable |
| USB-CA | SPARC USB Cable 1 |
| USB-CAF | SPARC USB Cable 2 |
| FSP-STP | SPARC Shoulder Strap |
Specifications
| Alignment Method | Core Alignment |
|---|---|
| Number of Fibers | Single |
| Applicable Fibers | SM (ITU-T G.652& T G.657) / MM (ITU-T G.651) / DS (ITU- T G.653) / NZDS (ITU-T G.655) |
| Coating Diameter | 100 ┬╡m - 3 mm |
| Cladding Diameter | 80 - 150 ┬╡m |
| Cleave Length | 5 - 16 mm |
| Typical Splice Loss | SM: 0.01dB / MM: 0.01dB / DS: 0.03dB / NZDS: 0.03dB / G.657: 0.01dB |
| Return Loss | >>60 dB |
| Splice Time | Quick mode: Avg. 4 sec / SM mode: Avg. 5 sec / Auto mode: Avg. 7 sec |
| Splice Programs | Max 128 modes |
| Automatic Calibration | Automatic Arc Calibration by air pressure & temperature |
| Electrode Life Span | 6000 Arc Discharges |
| Heating Programs | Max 32 modes |
| Heating Time | Quick: 9s / Average: 13s |
| Protection Sleeve Length | 20 mm - 60 mm |
| Data Output | USB-C |
| Splice Memory | 20,000 Splice Data / 10,000 Splice Images |
| Battery Capacity | 7000mAh / Operation Cycle: 400+ cycles (Splicing + Heating) |
| Power Supply | AC Input 100 - 240V, DC Input 9 - 19V |
| Monitor | 5.0" Color LCD display, Full Touch Screen |
| Magnification | x360, x520 |
| Pull Test | 1.96 - 2.25 N |
| Dimensions | 6.5" x 6.2" x 6" (16.51 cm x 15.75 cm x 15.24 cm) |
| Weight | 5.2 lbs (2358.68 g) |
| UPC # | 810132437922 |
