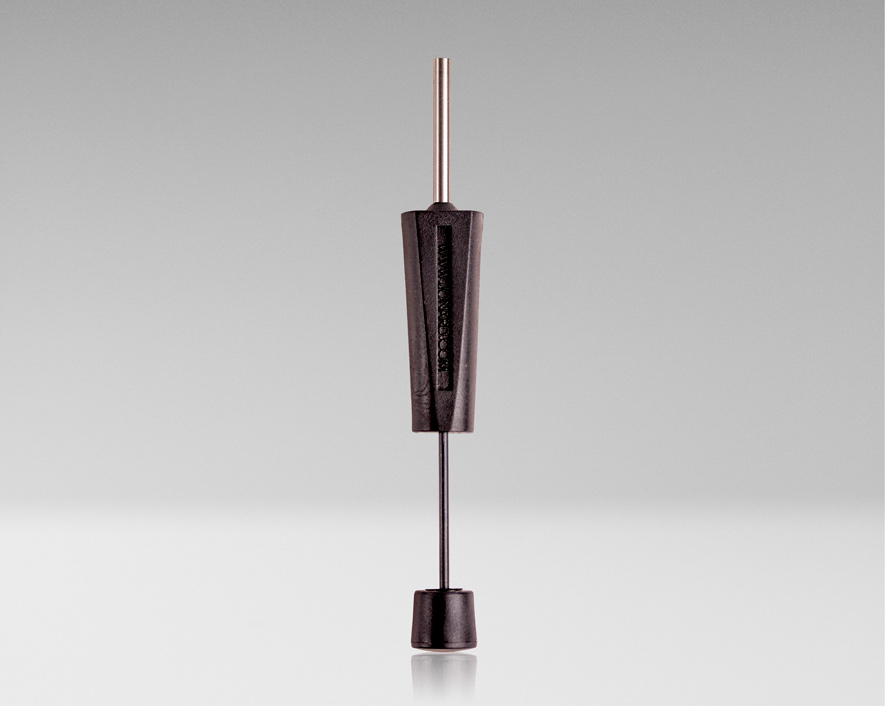

Pin Removal Tool, Contact Size 16-20
R-5926 Copy ID to clipboard
Buy OnlinePRODUCT FEATURES
Compatible with nearly all AMP-style pin connectors between contact sizes 16-20, this tool is perfect for extracting AMP CPC pins from the back of connector blocks. This insertion tool features the following:
- Smooth built-in plunger makes removal of pins quick and easy
- Pushes pins out from behind the connector blocks for contact sizes 16-20
Specifications
| Function | Extraction |
|---|---|
| Contact Size | 16-20 AWG (0.063"-0.040") |
| Outer Diameter | 0.129ΓÇ¥ - 0.131ΓÇ¥ (3.28 mm - 3.33 mm) |
| Dimensions | 3.22 in x 0.61 in x 0.45 in (8.17 cm x 1.54 cm x 1.15 cm) |
| Weight | 0.02 lb (9.988 g) |
| UPC # | 811490010307 |
| Function | Extraction |
|---|---|
| Contact Size | 16-20 AWG (0.063"-0.040") |
| Outer Diameter | 0.129ΓÇ¥ - 0.131ΓÇ¥ (3.28 mm - 3.33 mm) |
| Dimensions | 3.22 in x 0.61 in x 0.45 in (8.17 cm x 1.54 cm x 1.15 cm) |
| Weight | 0.02 lb (9.988 g) |
| UPC # | 811490010307 |
R-5926
![]()
Pin Removal Tool, Contact Size 16-20
