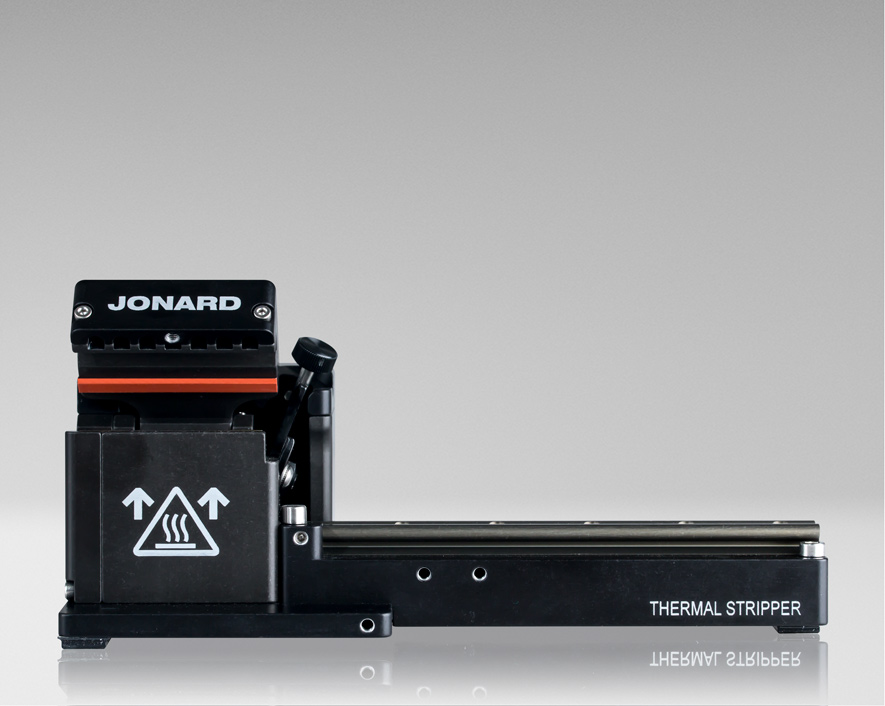

TSAB-40 - Thermal Stripper, Adjustable Blade

Blade Type
Blade Type: Adjustable

PRODUCT FEATURES

Designed to thermomechanically remove coatings from optical fibers with cladding, this adjustable thermal stripper is perfect for stripping extremely difficult or baked-on coatings with ease. This thermal stripper also features the following:

Heater is adjustable up to 200┬░C, far hotter than any competing product
Has the ability to remove some fluoroacrylate undercoatings using high temperature
Adjustable temperature and time settings allow it to adapt to a wide range of acrylate coatings and cladding sizes
Supports optical fibers with cladding diameters from 30 ┬╡m to 1000 ┬╡m, with buffer diameters up to 1200 ┬╡m, including 250 ┬╡m, 400 ┬╡m, and 900 ┬╡m coated fibers
Compact and low-maintenance benchtop design makes this easy and convenient to use
Supports Fitel, Fujikura, and Ericsson fiber holder platforms, and a Universal Clamp for LDF or any other type of fiber (each sold separately)
Includes: Adjustable Thermal Stripper, Power Supply, Power Cord, Cleaning Brush

Specifications

Blade Type	Adjustable
Supported Fiber Buffers	Γëñ 1200 ┬╡m
Supported Fiber Types	30 ┬╡m-1000 ┬╡m cladding
Adjustable Temperature Range	60-200┬░C, or ambient
Adjustable Heat Time Range	0-30 seconds (2 second increments)
External Power Supply	100-240 VAC, 47-63 Hz
Dimensions	5.1" x 2.9" x 2.8" (129.5 mm x 73.5 mm x 71 mm)
Weight	0 lb (0 g)
UPC #	811490011243
