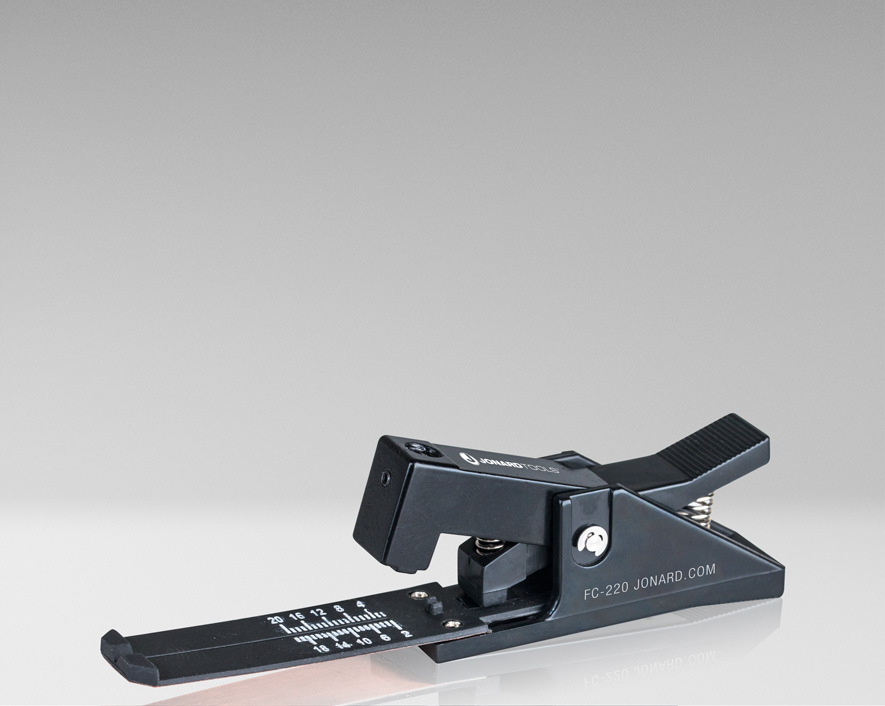

Fiber Cleaver
FC-220 Copy ID to clipboard
Buy OnlinePRODUCT FEATURES
Designed to cleave either 900 ┬╡m buffered or 250 ┬╡m coated fiber, this fiber cleaverΓÇÖs quick and easy three step operation is perfectly suited for mechanical splicing and quick field termination of fiber connectors. This fiber cleaver features the following:
- Leaf spring scale is ruled to allow accurate and precise cleave lengths from 2 to 20 mm (0.079ΓÇ¥ to 0.79ΓÇ¥)
- Ultra-strong carbide blade will last up to 6,000 cleaves before needing to be replaced
- Handles both single and multi-mode fibers with 125 ┬╡m cladding
- Replacement Parts: FC-4 Replacement Blade and FC-65 Replacement Leaf Spring
Specifications
| Cleave Length | 2.0 mm to 20.0 mm (0.079" to 0.79") |
|---|---|
| Dimensions | 4.89" x 0.787" x 1.57" (124 mm x 20 mm x 40 mm) |
| Operating Temperature | 0 to 40┬░C |
| Storage Temperature | -20 to 60┬░C |
| Weight | 0.31 lb (139.832 g) |
| UPC # | 811490017078 |
| Cleave Length | 2.0 mm to 20.0 mm (0.079" to 0.79") |
|---|---|
| Dimensions | 4.89" x 0.787" x 1.57" (124 mm x 20 mm x 40 mm) |
| Operating Temperature | 0 to 40┬░C |
| Storage Temperature | -20 to 60┬░C |
| Weight | 0.31 lb (139.832 g) |
| UPC # | 811490017078 |
FC-220
![]()
Fiber Cleaver
