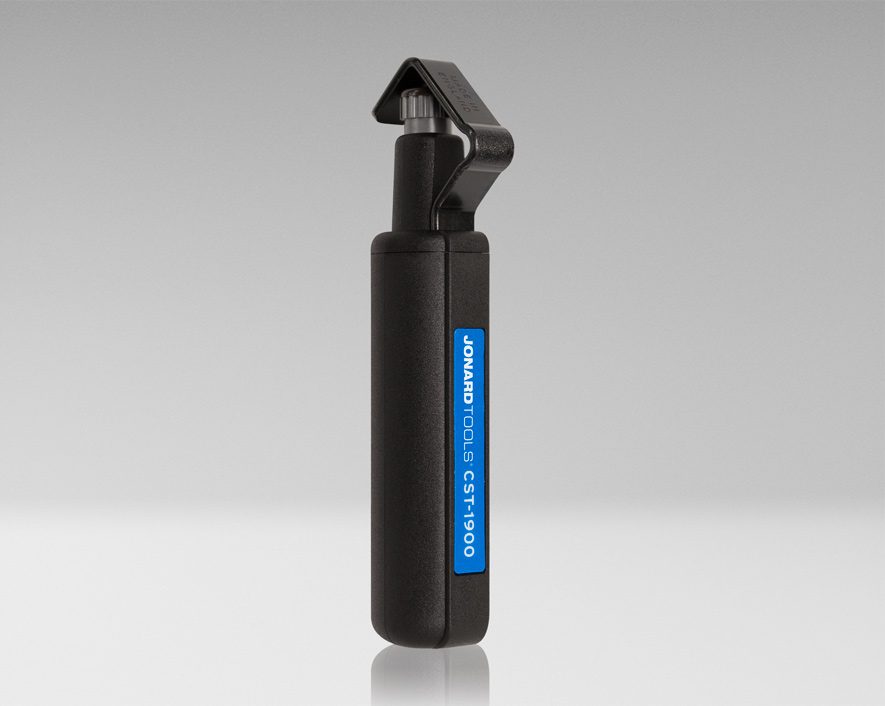

Round Cable Strip & Ring Tool
CST-1900 Copy ID to clipboard
Buy Online
PRODUCT FEATURES
The PATENTED CST-1900 Round Cable Strip & Ring Tool is designed for fast and precise removal of cable jackets from round cables that are 3/16ΓÇ¥ to 1 1/8ΓÇ¥ (4.5 mm-29 mm) in diameter. This round cable stripper features the following: Patented stripping mechanism provides a "spiral stripping mode" to strip and remove tough insulations Can cut through a variety of jacket materials such as PVC, rubber, PE, and many more Triple action design as it can make longitudinal cuts for end stripping, spiral cuts for end and mid span stripping, and circular cuts for jacket removal Spring-loaded blade can be rotated 90 degrees for versatile slitting and can be adjusted for multiple round cable sizes from 3/16" to 1 1/8" (4.5 mm-29 mm) in diameter Blade depth 0 mm-3 mm Replacement blade is available (part #: CST-7915)
- Patented stripping mechanism provides a "spiral stripping mode" to strip and remove tough insulations
- Can cut through a variety of jacket materials such as PVC, rubber, PE, and many more
- Triple action design as it can make longitudinal cuts for end stripping, spiral cuts for end and mid span stripping, and circular cuts for jacket removal
- Spring-loaded blade can be rotated 90 degrees for versatile slitting and can be adjusted for multiple round cable sizes from 3/16" to 1 1/8" (4.5 mm-29 mm) in diameter
- Blade depth 0 mm-3 mm
Specifications
| Cut Type | Slit, Ring |
|---|---|
| Cable Type | Jacket, Round Distribution |
| Cable Diameter | 3/16"-1 1/8" (4.5 mm-29 mm) |
| Blade Depth | 0 mm-3 mm |
| Overall Length | 5 1/4" (133 mm) |
| Overall Length | |
| Dimensions | 5.4 in x 1.49 in x 1.2 in (13.7 cm x 3.78 cm x 3.04 cm) |
| Weight | 0.21 lb (95.34 g) |
| UPC # | 811490011977 |
